Top End Piston Kit 10.25:1 Compression - 82.00mm Bore (+1.00mm) - Honda TRX/ATC 350

$223.95

Add to Cart:


Please select a vehicle to verify part fitment

Details

  • SKU: PK1017
  • Manufacturer: Wiseco

Description

Honda TRX/ATC 350

  • Bore - Actual: 82.00mm
  • Bore - Oversize: 1.00mm
  • Compression Ratio - Actual: 10.25:1
  • Displacement: 359cc
  • Note: Workman
  • Stroke: 68.00mm
  • UPC: 193564148001

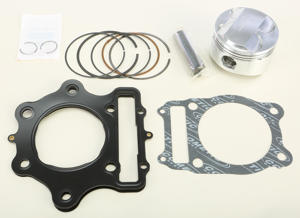

    Includes The Following Components
  • 3228XG - 82.00 mm Ring Set
  • 4393M08200 - Honda ATC/TRX350 '85-89 10.25:1 3228XG
  • CW21 - 21mm Round Wire Locks - Set of Two
  • Ring - Set
  • S529 - PistonPin 21mm x 2.756" NonChromed SW
  • W5559 - TopEnd Gskt Kit Honda TRX & ATC350X

  • Top End kit includes: piston, rings, wrist pin, clips, top end bearing (2 strokes), and gasket kit
  • Each piston is built from race proven designs that are chosen by the top race teams in all forms of racing including Supercross, Motocross, GNCC, Superbike, and more
  • Dedicated forgings used for superior strength to weight ratio utilizing aerospace alloy
  • High Performance ring kit and alloy pin included with each piston kit for extended life and sustained power
Wiseco's complete top end Piston Kits are offered for nearly every popular motorcycle application. These kits contain everything you need to complete your rebuild the right way, the first time. High quality parts specifically chosen by us to match our forged pistons are included in this kit for easy one stop shopping.

This part fits the following

TypeMakeModelYearEngineLocationRequiredNotes
ATV / SxSHondaATC350X19853501
ATV / SxSHondaATC350X19863501
ATV / SxSHondaTRX300FW Fourtrax 4x419893001
ATV / SxSHondaTRX350 Fourtrax 4x419863501
ATV / SxSHondaTRX350 Fourtrax 4x419873501
ATV / SxSHondaTRX350D Foreman 4x419873501
ATV / SxSHondaTRX350D Foreman 4x419883501
ATV / SxSHondaTRX350D Foreman 4x419893501


This product was added to our catalog on Tuesday 18 August, 2020.
